Square tiles [top]

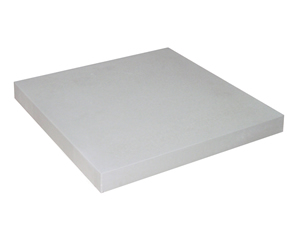

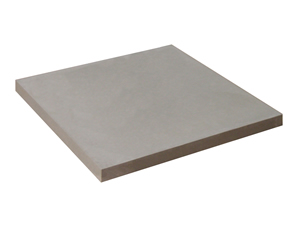

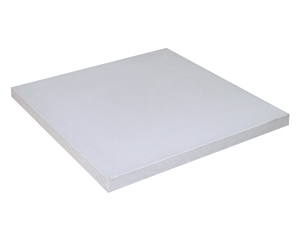

concrete tile

Square tile

Dimension (top/bottom) 494/496 x 494/496 x 48 mm
Surface R10
Colour 10

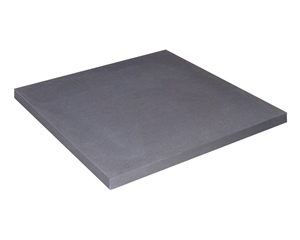

square tile grey

Square tile

Dimension (top/bottom) 447/449 x 447/449 x 28 mm
Surface R9
Colour 15


square tile grey

Square tile

Dimension (top/bottom) 289/291 x 289/291 x 18 mm
Surface R9
Colour 40


square tile grey

Square tile

Dimension (top/bottom) 597/599 x 597/599 x 28 mm
Surface R9
Colour 15


square tile grey

Square tile

Dimension (top/bottom) 494/496 x 494/496 x 48 mm
Surface R9
Colour 45


square tile grey

Square tile

Dimension (top/bottom) 245/247 x 245/247 x 18 mm
Surface R9
Colour 20


square tile yellow

Square tile

Dimension (top/bottom) 192/193 x 192/193 x 18 mm
Surface R9
Colour yellow

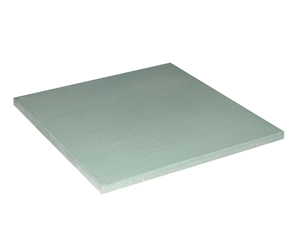

square tile green

Square tile

Dimension (top/bottom) 395/397 x 395/397 x 18 mm
Surface R9
Colour green

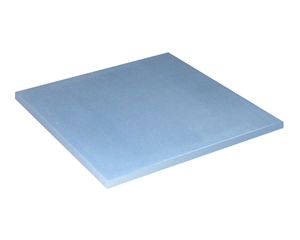

square tile blue

Square tile

Dimension (top/bottom) 395/397 x 395/397 x 18 mm
Surface R9
Colour light blue

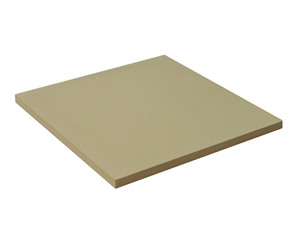

square tile brown

Square tile

Dimension (top/bottom) 395/397 x 395/397 x 18 mm
Surface R9
Colour 7


square tile 6

Square tile

Dimension (top/bottom) 395/397 x 395/397 x 18 mm
Surface R9
Colour 6


square tile 3

Square tile

Dimension (top/bottom) 395/397 x 395/397 x 18 mm
Surface R9
Colour 3

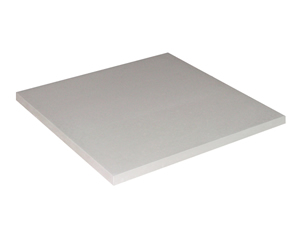

square tile 5

Square tile

Dimension (top/bottom) 395/397 x 395/397 x 18 mm
Surface R9
Colour 5


square tile 2

Square tile

Dimension (top/bottom) 395/397 x 395/397 x 18 mm
Surface R9
Colour 2


square tile 1

Square tile

Dimension (top/bottom) 395/397 x 395/397 x 18 mm
Surface R9
Colour 1


square tile grey

Square tile

Dimension (top/bottom) 395/397 x 395/397 x 28 mm
Surface R9
Colour 24


square tile grey

Square tile

Dimension (top/bottom) 597/599 x 597/599 x 28 mm
Surface R9
Colour 27


square tile grey

Square tile

Dimension (top/bottom) 297/299 x 297/299 x 28 mm
Surface R10
Colour 45


square tile grey

Square tile

Dimension (top/bottom) 597/599 x 597/599 x 18 mm
Surface R9
Colour 27

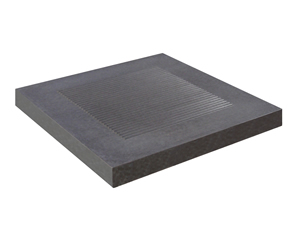

square tile grooves

Square tile with grooves

Dimension (top/bottom) 494/496 x 494/496 x 50 mm
Surface R10
Colour 20


square tile grooves

Square tile with grooves

Dimension (top/bottom) 494/496 x 494/496 x 50 mm
Surface R10
Colour 45



Rectangular tiles [top]

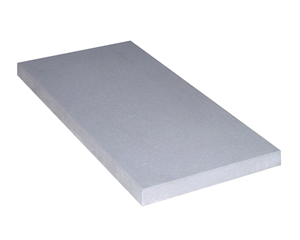

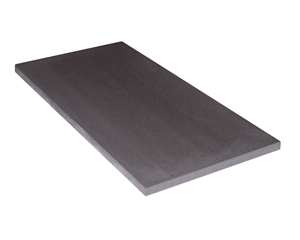

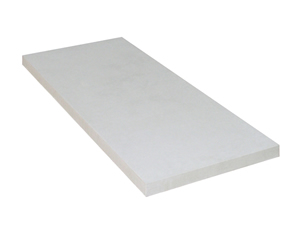

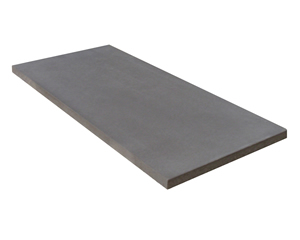

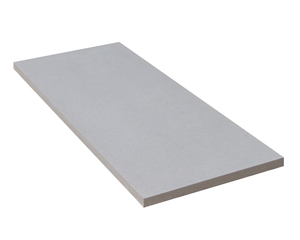

rectangular tile

Rectangular tile

Dimension (top/bottom) 299/301 x 699/701 x 18 mm
Surface R9
Colour 24

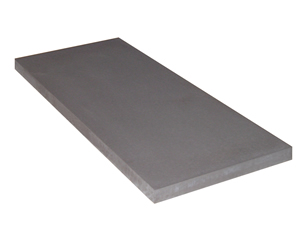

rectangular tile

Rectangular tile

Dimension (top/bottom) 297/299 x 597/599 x 28 mm
Surface R9
Colour 66


rectangular tile

Rectangular tile

Dimension (top/bottom) 245/247 x 495/497 x 28 mm
Surface R9
Colour 24


rectangular tile

Rectangular tile

Dimension (top/bottom) 299/301 x 699/701 x 28 mm
Surface R9
Colour 40


rectangular tile

Rectangular tile

Dimension (top/bottom) 297/299 x 597/599 x 18 mm
Surface R10
Colour 45


rectangular tile

Rectangular tile

Dimension (top/bottom) 440/442 x 920/922 x 28 mm
Surface R10
Colour 40



Stair tiles [top]

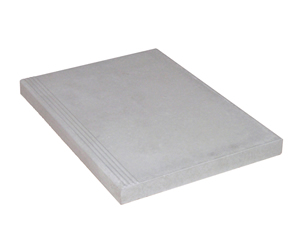

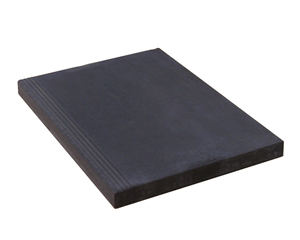

step tile grooves

Step tile with grooves and riser

Dimension (top/bottom) 393/395 x 393/395 x 28 mm
Surface R9
Colour 45


step tile grooves

Step tile with grooves and riser

Dimension (top/bottom) 393/395 x 393/395 x 28 mm
Surface R9
Colour 20


step tile grooves

Step tile with grooves

Dimension (top/bottom) 286/288 x 386/388 x 28 mm
Surface R9
Colour 24


step tile grooves

Step tile with grooves

Dimension (top/bottom) 286/288 x 386/388 x 28 mm
Surface R9
Colour 45

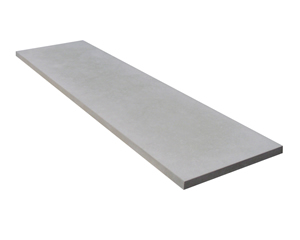

step tile

Step tile

Dimension (top/bottom) 350/352 x 1300/1302 x 28 mm
Surface R9
Colour 24

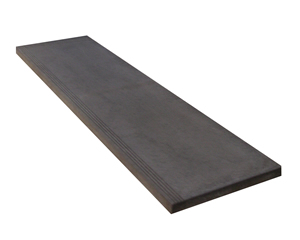

step tile grooves

Step tile with grooves

Dimension (top/bottom) 297/299 x 1100/1102 x 28 mm
Surface R9
Colour 45

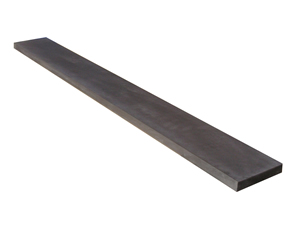

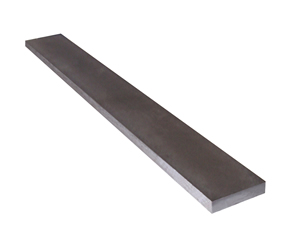

riser

Riser

Dimension (top/bottom) 139/141 x 1100/1102 x 28 mm
Surface R9
Colour 45

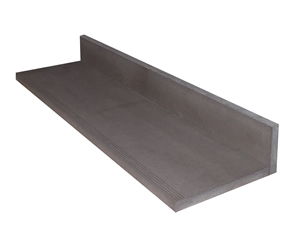

step tile riser

Step tile and riser

(see above)


riser

Riser

Dimension (top/bottom) 164 x 1400 x 28 mm
Surface R9
Colour 45

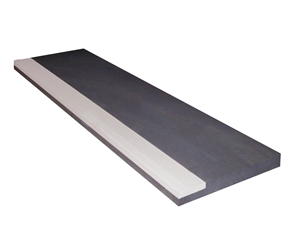

step tile

Step tile black/white

Dimension (top/bottom) 344/346 x 1198/1200 x 40 mm
Surface R10
Colour 45/66



Tactile paving surface indicators [top] - more information about the tactile paving concept "Intactila"

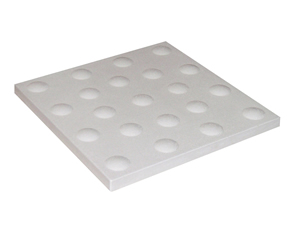

attention tile

Attention tile

Dimension (top/bottom) 297/299 x 297/299 x 18 mm
Surface R10
Colour 66


attention tile

Attention tile

Dimension (top/bottom) 297/299 x 297/299 x 18 mm
Surface R10
Colour 45

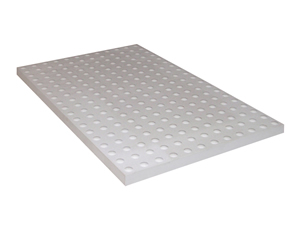

attention tile

Attention tile

Dimension (top/bottom) 477/479 x 757/759 x 28 mm
Surface R9
Colour 45


attention tile

Attention tile

Dimension (top/bottom) 477/479 x 757/759 x 28 mm
Surface R9
Colour 66

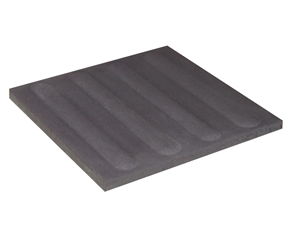

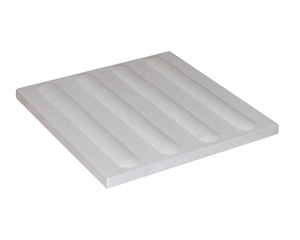

guiding tile

Guiding tile

Dimension (top/bottom) 297/299 x 297/299 x 18 mm
Surface R10
Colour 66


guiding tile

Guiding tile

Dimension (top/bottom) 297/299 x 297/299 x 18 mm
Surface R10
Colour 45

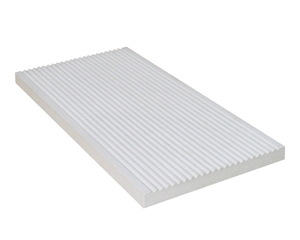

guiding tile

Guiding tile

Dimension (top/bottom) 297/299 x 597/599 x 28 mm
Surface R10
Colour 66



MinorLit tiles as raised floor [top]

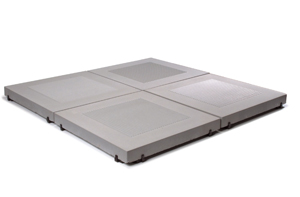

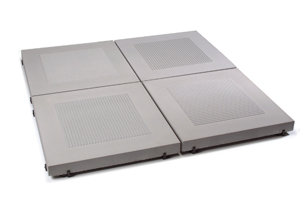

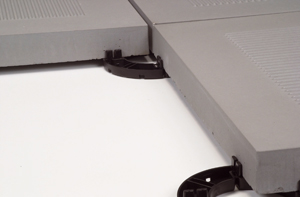

MinorLit auf Doppelboden

Square tile with grooves

Dimension (top/bottom) 494/496 x 494/496 x 50 mm
Surface R10
Colour 20

(on Paroll raised-floor system)


MinorLit auf Doppelboden




MinorLit auf Doppelboden




MinorLit auf Doppelboden

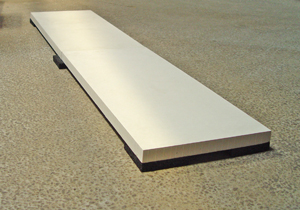

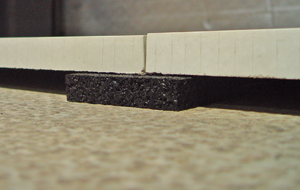

Rectangular tile

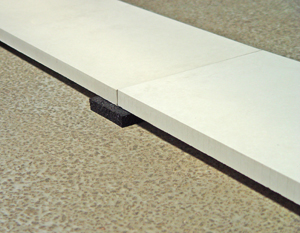

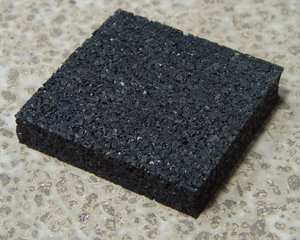

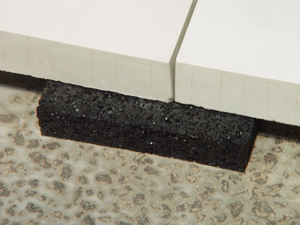

(on rubber-pieces, available in different heights, the rubber has a step-sound absorbing and resilient effect)











Special tiles [top]

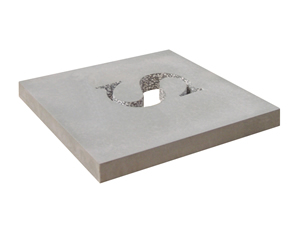

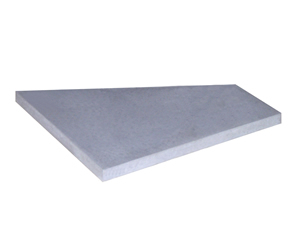

custom-made tile

Special customization

Dimension (top/bottom) 306/308 x 269/271 x 18 mm
Surface R9
Colour 27


custom-made tile

Custom-made production

Dimension (top/bottom) 597/599 x 597/599 x 28 mm
Surface R9
Colour 45


custom-made tile

Custom-made production

Dimension (top/bottom) 494/496 x 494/496 x 48 mm
Surface R9
Colour 24
